Wooden drawing shelves
Charcoal filter included

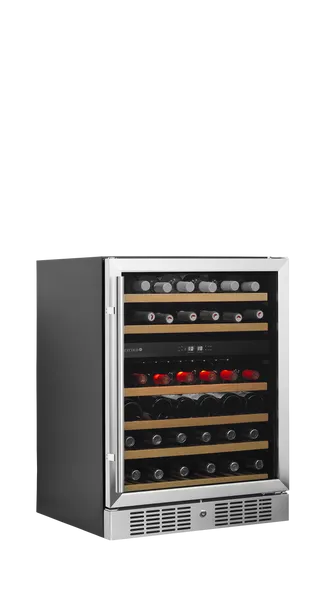

Wine Cooler
TFW200-2S
Item no.: 34129(Substitution for 16114 )
Brand: TEFCOLD
- Stainless steel door frame and handle
- 2 temperature zones with a max. of 7°C variation
- Energy efficient cooling system
- Very low noise level
- LED interior light with switch
- Reversible glass door
- Wooden shelves
- High/low temperature alarm
Technical specifications
Measures and Content
- Temperature Range+5 to +10 / +10 to +18 °C
- Climate Class4
- Gross / Net Weight49 / 44 kg
- Gross / Net Volume155 / 131 l
- Wine Bottles 750 ml46 pcs
Design and Material
- Feet / Legs4 adjustable feet
- Exterior FinishBlack
- Interior FinishBlack ABS
- Interior LightLED
- Door No & Type1 hinged glass door
- Door Reversible
- Shelves No & Type6 wooden wine shelves
- Max load on Shelves35 kg/m²
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingFan assisted
- Type of DefrostAutomatic
- RefrigerantR600a
- Refrigerant Charge35 g
- Thermometer
Power and Consumption
- Energy ClassG
- EPREL No734217
- Max Ambient30°C at 55% RH
- Energy Consumption0.4 kWh/24h
- Annual Energy Cons.145 kWh/year
- Input Power160 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level40 dB(A)
Dimensions
- Internal Dimension (WxDxH)520 x 445 x 605 mm
- External Dimension (WxDxH)595 x 570 x 820 mm
- Packed Dimension (WxDxH)670 x 670 x 880 mm
- 40ft Container Load 108 pcs
- GTIN / EAN5708181995072
Downloads
Description
Spare parts
- 01Item no. 14224Evaporating Tube
- 02Item no. 34773Wire Clamp
- 03
Item no. 11597Water Tank - 06
Item no. 38857Anti-Vibration Gasket - 07Item no. 15703Filter Drier
- 11Item no. 13638Electrical Box
- 12
Item no. 41625Thermostat PCB Power Board from 2021 - 15Item no. 12972Top Hinge Left
- 15Item no. 34799Top right hinge
- 16Item no. 33620Evaporator Foam
- 17Item no. 54317Evaporator
- 20
Item no. 13800Cabinet Sensor - 21Item no. 11486Drip Tray
- 23Item no. 33621Heater Board
- 25Item no. 55366Fan
- 30
Item no. 38868Fan - 32
Item no. 38858LED Light - 33
Item no. 10957Display Holder - 33.1
Item no. 41623Thermostat PCB White Display Board from 2021 - 34
Item no. 13861Display Support - 35Item no. 34786Button
- 37
Item no. 34801Wooden Shelf - For Humid Box - 38Item no. 34802Door
- 38.1Item no. 55367Door Gasket
- 38.2Item no. 31369Handle 2020
- 39Item no. 34785Door hinge axis
- 40
Item no. 15254Wooden Shelf G (Bottom) - 41Item no. 54328Wooden Shelf - Not For Humid Box
- 42Item no. 34783Humid box
- 45
Item no. 14456Evaporator Sensor - 46Item no. 34813Sensor
- 47Item no. 34788Filter box
- 47.1Item no. 34789Filter
- 48Item no. 32349Bottom Grill For Lock
- 49
Item no. 10681Lock - 50Item no. 34807Air circulation gasket
- 51Item no. 54316Drain Pipe
- 52Item no. 54324Lower Hinge Right
- 53Item no. 34805Front leg bracket
- 54
Item no. 15601LED Light Cover - 55Item no. 54322Lower Hinge Left
- 57Item no. 14112Condenser
- 58
Item no. 14554Adjustable Feet - 59
Item no. 14177Condenser Cover - 60Item no. 54312Condenser Fan
- 61
Item no. 13504Fan Cover - 62Item no. 54311Compressor Bracket
- 99.1Item no. 31371Bottom Hinge Axis Left
- 99.2Item no. 31372Key
