Lock
Strong castors as option

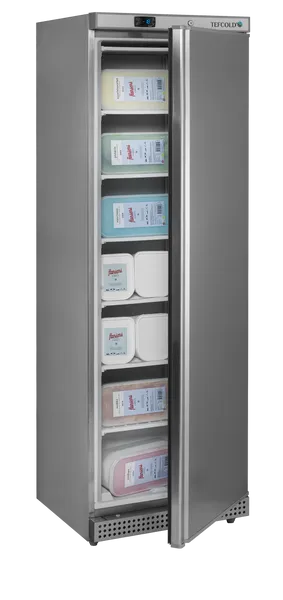

Storage Freezer
UF400S
Item no.: 33855(Substitution for 16354 UF400S)
Brand: TEFCOLD
- Stainless steel cabinet
- Integrated handle
- Reversible solid door
- Electronic thermostat
- Fixed freezing shelves
- Lock
- Adjustable feet with rollers to rear
- Digital temperature display
Technical specifications
Measures and Content
- Temperature Range-24 to -10 °C
- Climate Class4
- Gross / Net Weight85 / 80 kg
- Gross / Net Volume400 / 340 l
Design and Material
- Feet / Legs4 adjustable feet
- Castors2 rollers
- Exterior FinishSS430
- Interior FinishWhite ABS
- Interior LightNo
- Lock
- Door No & Type1 hinged solid door
- Door Reversible
- Shelves No & Type6 fixed freezing shelves
- Shelf ColorWhite
- Shelf Dimensions490 x 420 mm
- Max load on Shelves110 kg/m²
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingStatic
- Type of DefrostManual
- RefrigerantR600a
- Refrigerant Charge90 g
- Thermometer
Power and Consumption
- Max Ambient30°C at 55% RH
- Energy Consumption2.3 kWh/24h
- Annual Energy Cons.840 kWh/year
- Input Power150 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level40 dB(A)
Dimensions
- Internal Dimension (WxDxH)484 x 470 x 1620 mm
- External Dimension (WxDxH)600 x 585 x 1855 mm
- Packed Dimension (WxDxH)690 x 650 x 2050 mm
- 40ft Container Load 54 pcs
- GTIN / EAN5708181994297
Downloads
Spare parts
- 01
Item no. 12952Top Hinge - 02
Item no. 10670Hook Of Lock - 04
Item no. 34876Front panel Grey 2021 - 05
Item no. 12857Hinge Axis - 06
Item no. 12781Bushing For Diameter 6,6 mm Pin - 07
Item no. 10682Lock - 09
Item no. 12596Gasket - 10Item no. 34881Door SS 2021
- 12
Item no. 12743Bottom Hinge - 13
Item no. 14462Evaporator Support - 15
Item no. 14441Evaporator Fixer Set L-R - 17
Item no. 14555Adjustable Foot - 20
Item no. 11702Compressor EMT2125U R290 - 20
Item no. 11728Compressor HPKD190A R600 - 21
Item no. 13318Cond./Evap. Fan Rah1238B - 23Item no. 14077Block Condenser
- 24
Item no. 13545Fan Support - 25
Item no. 13896Probe NTC Dixell/Carel 10 Kohm - 26
Item no. 11233Rear Grill Before 2024 - 26Item no. 55145Rear Grill From 2024
- 31Item no. 14264Evaporator
- 35Item no. 14061Thermostat XR02CX 2 Probes
- 46Item no. 10905Bottom Support
- 47
Item no. 10875Bottom Panel Hexagonal SS430 - 48Item no. 15706Filter Drier
- 50
Item no. 10676Keys For 10682 - 51
Item no. 14631Castor 60 mm Without Brake - 52
Item no. 14630Castor 60 mm With Brake - 53
Item no. 14604Leg 85-115 mm - 54Item no. 34766Sheet For Castor 14630 Left Side
- 55Item no. 34767Sheet For Castor 14630 Right Side
- 92Item no. 41049Screw M5x35 With Spacer for Back Mounted Handles
