Accepts GN1/4 pan(s) (not supplied)
Stainless steel lid for protection of food

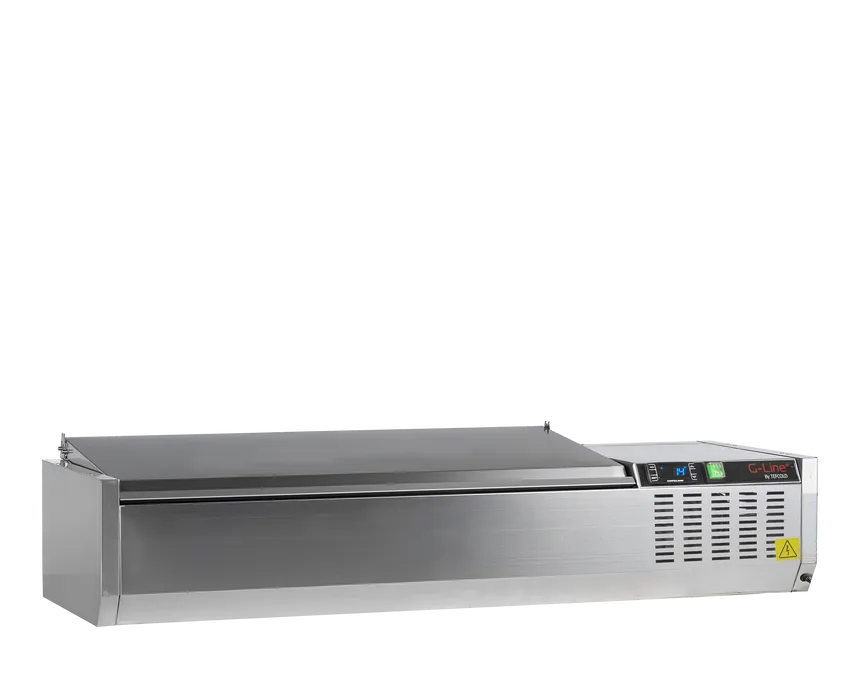

Vitrine Cooler GN1/4
GVC33-120 S/S
Item no.: 33586 (Substitution for 16499 VK33-120 S/S LID)
- Stainless steel lid
- Stainless steel
- Accepts GN1/4 pans (Not supplied)
- Digital controller and temperature display
- Static cooling
- Adjustable feet
Technical specifications
Measures and Content
- Temperature Range+2 to +8 °C
- Climate Class4
- Gross / Net Weight29 / 25 kg
- Gross / Net Volume31 / 26 l
- Capacity GN Pans5 x GN1/4 pcs
Design and Material
- Feet / LegsAdjustable feet
- Exterior FinishSS201
- Interior FinishSS201
- Interior LightNo
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingStatic
- Type of DefrostManual
- RefrigerantR600a
- Refrigerant Charge45 g
- Thermometer
Power and Consumption
- Max Ambient30°C at 55% RH
- Energy Consumption2.64 kWh/24h
- Annual Energy Cons.964 kWh/year
- Input Power110 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level40 dB(A)
Dimensions
- Internal Dimension (WxDxH)850 x 245 x 150 mm
- External Dimension (WxDxH)1200 x 335 x 288.5 mm
- Packed Dimension (WxDxH)1300 x 375 x 330 mm
- 40ft Container Load 324 pcs
- GTIN / EAN5708181993771
Downloads
Description
Spare parts
- 01
Item no. 14575Feet - 03
Item no. 12795Cover Hinge Axis - 03
Item no. 12907Nut For Cover Hinge Axis - 04
Item no. 13169Strengthening Board - 06
Item no. 14768Divider For GN1/4 Pans 268x27 mm - 07
Item no. 14771Divider For GN1/6 Pans 178x76 mm - 09
Item no. 35025Unit Room Cover For Thermostat - 10
Item no. 15722Filter Drier 20 G - 11Item no. 13237Defrost Water Coil
- 12
Item no. 14193Condensor - 13Item no. 35077Air Flow Window
- 14
Item no. 10020Filter 182 x 215 mm - 15
Item no. 10068Plastic Cap - 16Item no. 35076Side Cover
- 20
Item no. 13318Cond./Evap. Fan Rah1238B - 21Item no. 11725Compressor HDL100A R600A
- 23
Item no. 13754Main Switch - 24Item no. 14061Thermostat XR02CX 2 Probes
- 26Item no. 51615Sensor
- 26Item no. 55807Sensor
