Glass structure for protection of food
Accepts GN1/4 pan(s) (not supplied)

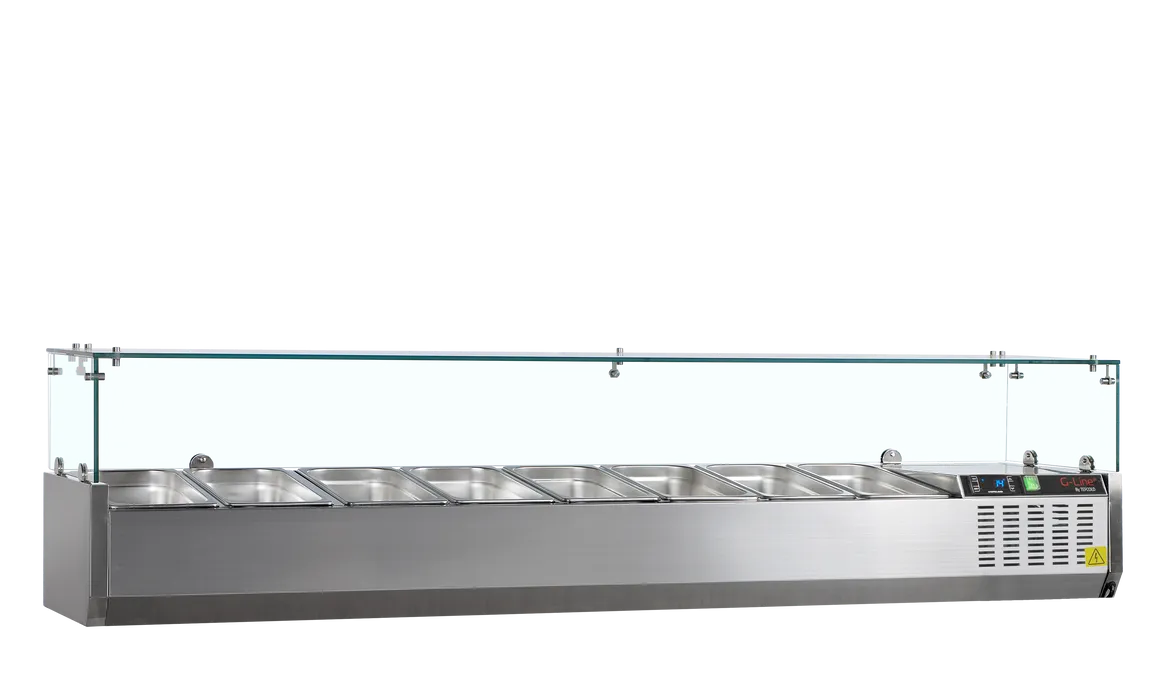

Vitrine Cooler GN1/4
GVC33-180
Item no.: 32371 (Substitution for 16508 VK33-180)
- Stainless steel
- Glass structure for protection of food
- Accepts GN1/4 pan(s) (not supplied)
- Digital controller and temperature display
- Static cooling
- Adjustable feet
Technical specifications
Measures and Content
- Temperature Range+2 to +8 °C
- Climate Class4
- Gross / Net Weight37 / 32 kg
- Gross / Net Volume53.2 / 41.6 l
- Capacity GN Pans8 x GN1/4 pcs
Design and Material
- Feet / LegsAdjustable feet
- Exterior FinishSS201
- Interior FinishSS201
- Interior LightNo
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingStatic
- Type of DefrostManual
- RefrigerantR600a
- Refrigerant Charge45 g
- Thermometer
Power and Consumption
- Max Ambient30°C at 55% RH
- Energy Consumption2.93 kWh/24h
- Annual Energy Cons.1069 kWh/year
- Input Power122 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level40 dB(A)
Dimensions
- Internal Dimension (WxDxH)1450 x 245 x 150 mm
- External Dimension (WxDxH)1800 x 335 x 448 mm
- Packed Dimension (WxDxH)1900 x 375 x 280 mm
- 40ft Container Load 222 pcs
- GTIN / EAN5708181992361
Downloads
Description
Spare parts
- 01
Item no. 14575Feet - 02
Item no. 10499Clips Glass Cover - 04
Item no. 10621Side Glass - 05Item no. 35045Bushing
- 06Item no. 35046Glass Fixed Bolt
- 07Item no. 35047Glass Linked Clip
- 08Item no. 35048Glass Clip Fixed Nut
- 09Item no. 35061Top Glass
- 10Item no. 35062Front Glass
- 11
Item no. 35025Unit Room Cover For Thermostat - 12
Item no. 15722Filter Drier 20 G - 13Item no. 13237Defrost Water Coil
- 14
Item no. 14193Condensor - 15
Item no. 10068Plastic Cap - 16Item no. 35076Side Cover
- 20
Item no. 13318Cond./Evap. Fan Rah1238B - 21Item no. 11725Compressor HDL100A R600A
- 23
Item no. 13754Main Switch - 24Item no. 14061Thermostat XR02CX 2 Probes
- 26
Item no. 14769Divider For GN1/4 Pans 268x34 mm - 27
Item no. 14771Divider For GN1/6 Pans 178x76 mm - 28
Item no. 10020Filter 182 x 215 mm - 29Item no. 35077Air Flow Window
- 30Item no. 51615Sensor
- 30Item no. 55807Sensor
