Glass structure for protection of food
Accepts GN1/3 pan(s) (not supplied)

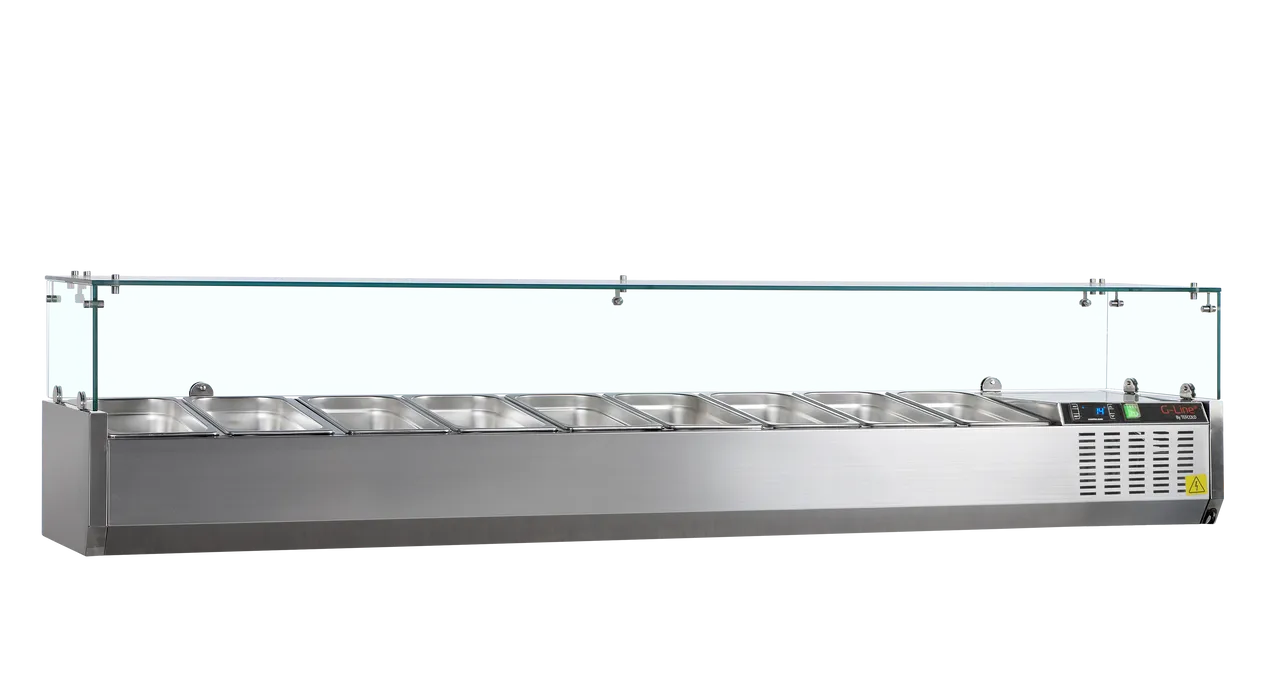

Vitrine Cooler GN1/3
GVC38-200
Item no.: 33603 (Substitution for 16528 VK38-200)
- Stainless steel
- Glass structure for protection of food
- Accepts GN1/3 pans (Not supplied)
- Digital controller and temperature display
- Static cooling
- Adjustable feet
Technical specifications
Measures and Content
- Temperature Range+2 to +8 °C
- Climate Class4
- Gross / Net Weight42.5 / 37 kg
- Gross / Net Volume75.4 / 63.9 l
- Capacity GN Pans9 x GN1/3 pcs
Design and Material
- Feet / LegsAdjustable feet
- Exterior FinishSS201
- Interior FinishSS201
- Interior LightNo
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingStatic
- Type of DefrostManual
- RefrigerantR600a
- Refrigerant Charge45 g
- Thermometer
Power and Consumption
- Max Ambient30°C at 55% RH
- Energy Consumption2.93 kWh/24h
- Annual Energy Cons.1069 kWh/year
- Input Power122 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level40 dB(A)
Dimensions
- Internal Dimension (WxDxH)1650 x 305 x 150 mm
- External Dimension (WxDxH)2000 x 395 x 448 mm
- Packed Dimension (WxDxH)2100 x 435 x 280 mm
- 40ft Container Load 168 pcs
- GTIN / EAN5708181993948
Downloads
Description
Spare parts
- 01
Item no. 14575Feet - 02
Item no. 10499Clips Glass Cover - 04
Item no. 10622Side Glass - 05Item no. 35045Bushing
- 06Item no. 35046Glass Fixed Bolt
- 07Item no. 35047Glass Linked Clip
- 08Item no. 35048Glass Clip Fixed Nut
- 09Item no. 35073Top Glass
- 10Item no. 35064Front Glass
- 11
Item no. 11869Unit Room Cover For Compressor - 12
Item no. 15722Filter Drier 20 G - 14
Item no. 14193Condensor - 15
Item no. 10068Plastic Cap - 16
Item no. 11322Unit Side - 20
Item no. 13318Cond./Evap. Fan Rah1238B - 21
Item no. 11726Compressor HDL140A R600 - 23
Item no. 13754Main Switch - 24Item no. 14061Thermostat XR02CX 2 Probes
- 26
Item no. 14763Divider For GN1/3 Pans 326x26 mm - 27
Item no. 14770Divider For GN1/6 Pans 178x16 mm - 28
Item no. 10020Filter 182 x 215 mm - 29Item no. 35077Air Flow Window
- 30Item no. 51615Sensor
- 30Item no. 55807Sensor
