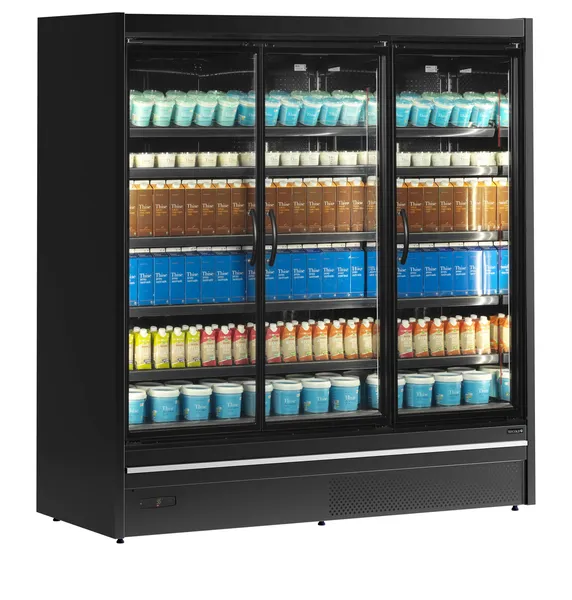

Supermarket Multideck Cooler
MDCA1875HB
Item no.: 55397
- EU Energy Class B
- Excellent product visibility
- Controller with Bluetooth and NFC connectivity
- Can be multiplexed - Create uninterrupted continuous line
- Adjustable shelves with tilting function
- Ticket strip and acrylic front riser as standard
- Solid 40 mm endwalls with mirrored interior
- Internal vertical and horizontal LED light
- Stainless steel bumper bars
- Energy saving variable speed compressor
- Multiplexing kit as accessory
Technical specifications
Measures and Content
- Temperature Range-1 to +5 °C
- Climate Class3
- Gross / Net Weight450 / 408 kg
- Gross / Net Volume1573 / 1110 l
- Total Display Area2.63 m²
Design and Material
- Feet / LegsAdjustable feet
- Exterior FinishBlack RAL9005
- Interior FinishBlack RAL9005
- Interior Light
- LockNo
- Door No & Type3 hinged glass door
- Door ReversibleNo
- Shelves No & Type10 black sheet metal
- Shelf ColorBlack
- Shelf Dimensions937x400
- Max load on Shelves120 kg/m²
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingVentilated
- RefrigerantR290
- Refrigerant Charge150 g
- Thermometer
Power and Consumption
- Energy ClassB
- EPREL No2297052
- Max Ambient25°C at 60% RH
- Energy Consumption7.5 kWh/24h
- Annual Energy Cons.2738 kWh/year
- Input Power912 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level60 dB(A)
Dimensions
- Internal Dimension (WxDxH)1875 x 565 x 1512 mm
- External Dimension (WxDxH)1955 x 805 x 2095 mm
- Packed Dimension (WxDxH)2100 x 900 x 2400 mm
- 40ft Container Load 13 pcs
- GTIN / EAN5708181741198
Downloads
Description
Spare parts
- 02Item no. 55577Shelf
- 03Item no. 55578Shelf Stopper
- 04Item no. 55616Price Tag
- 05Item no. 55580Bottom Shelf
- 06Item no. 55581Air Inlet
- 07.1Item no. 55608Door Right
- 07.2Item no. 55609Door Left
- 08Item no. 54878Adjustable Feet
- 09Item no. 55617Top Panel
- 10Item no. 55618Bottom Panel
- 11Item no. 55619Bottom Grill
- 12Item no. 55620Bumper
- 13Item no. 55588Bumper cover
- 14.1Item no. 55589End Wall Right
- 14.2Item no. 55590End Wall Left
- 15Item no. 55591Mirror
- 16Item no. 55621Condenser
- 17Item no. 55622Evaporator
- 18Item no. 55594Condenser Fan Motor
- 19Item no. 55633Compressor
- 20Item no. 55596Evaporator Fan
- 21Item no. 55597Conderser Fan Blade
- 22Item no. 55598Thermostat
- 24Item no. 55599Water Tray
- 25.1Item no. 55600Vertical LED
- 25.2Item no. 55623Horizontal LED
- 26Item no. 55624LED Power Supply
