Frameless door
Curved handle

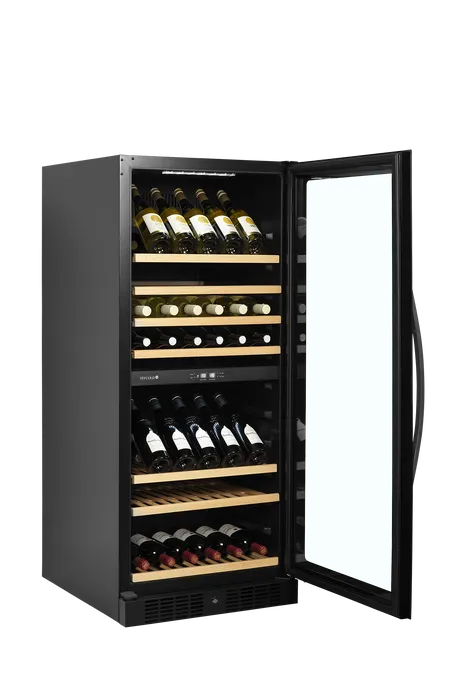

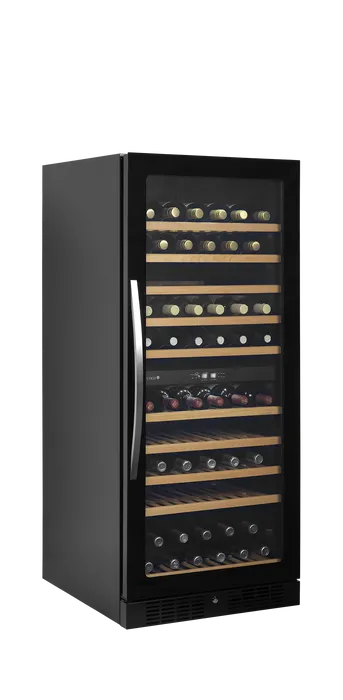

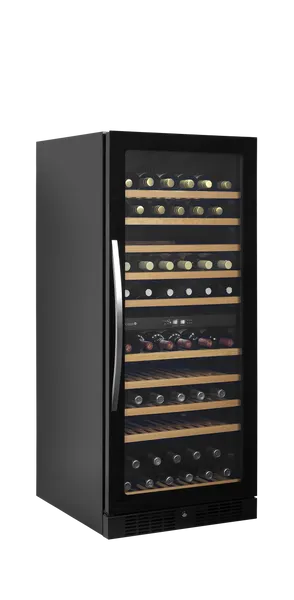

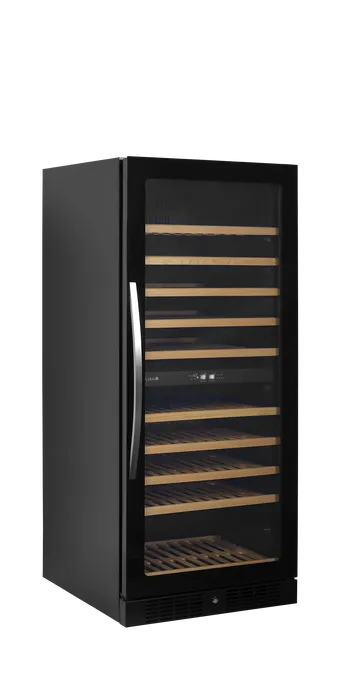

Wine Cooler
TFW300-2F
Item no.: 34126
Brand: TEFCOLD
- Frameless glass door
- 2 temperature zones with a max. of 10°C variation
- Energy efficient cooling system
- Very low noise level
- LED interior light with switch
- Reversible door
- Curved stainless steel handle
- Wooden shelves
- Presentation shelves available as option
- High/low temperature alarm
Technical specifications
Measures and Content
- Temperature Range+5 to +10 / +10 to +18 °C
- Climate Class4
- Gross / Net Weight94 / 89 kg
- Gross / Net Volume270 / 250 l
- Wine Bottles 750 ml119 pcs
Design and Material
- Feet / Legs4 adjustable feet
- Exterior FinishBlack
- Interior FinishBlack ABS
- Interior LightLED
- Door No & Type1 hinged frameless door
- Max load on Shelves35 kg/m²
- Shelves No & Type10 wooden wine shelves
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingFan assisted
- Type of DefrostAutomatic
- RefrigerantR600a
- Refrigerant Charge60 g
- Thermometer
Power and Consumption
- Energy ClassG
- EPREL No966534
- Max Ambient30°C at 55% RH
- Energy Consumption0.41 kWh/24h
- Annual Energy Cons.150 kWh/year
- Input Power155 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level40 dB(A)
Dimensions
- Internal Dimension (WxDxH)510 x 540 x 1130 mm
- External Dimension (WxDxH)595 x 680 x 1390 mm
- Packed Dimension (WxDxH)650 x 750 x 1590 mm mm
- 40ft Container Load 54 pcs
- GTIN / EAN5708181995041
Downloads
Description
Spare parts
- 01Item no. 15703Filter Drier
- 03
Item no. 11597Water Tank - 04
Item no. 38857Anti-Vibration Gasket - 05
Item no. 34815Compressor FMXA4C - 07Item no. 34773Wire Clamp
- 08Item no. 13639Electrical Box
- 09Item no. 34816Thermostat PCB 2020 version
- 09
Item no. 41625Thermostat PCB Power Board from 2021 - 11
Item no. 10046Decorative Nail - 12
Item no. 38858LED Light - 13
Item no. 15601LED Light Cover - 14
Item no. 38859Top Hinge Right - 15Item no. 14480Foam For Evaporator
- 16Item no. 55689Evaporator
- 17Item no. 34817Sensor
- 18
Item no. 38860Fan - 19Item no. 55366Fan
- 20Item no. 13570Foam For Heater Fan
- 21Item no. 11135Insulation Panel
- 22Item no. 13289PTC Heater
- 23
Item no. 14380Evaporator Cover - 24
Item no. 11528Evaporator Fan Air Conducter - 25Item no. 34818Sensor (upper zone)
- 26
Item no. 13848Cover For Sensor - 27Item no. 13430Evaporator Fan Cover
- 28Item no. 34819Fan cover
- 29Item no. 10456Middle Bridge Cover
- 30Item no. 13571Foam For Middle Bridge Fan
- 31Item no. 11179Middle Bridge Side Foam
- 32
Item no. 38861Air duct board C - 33
Item no. 41623Thermostat PCB White Display Board from 2021 - 34Item no. 34820Display board box
- 35
Item no. 13604Button - 36
Item no. 38863Thermostat Sticker - 37Item no. 34822Humid box
- 38
Item no. 38864Door axis - 39Item no. 38927Door - Before 08-2024
- 39Item no. 55690Door - After 08-2024
- 39.1
Item no. 12585Gasket - 39.2
Item no. 12675Handle - 40
Item no. 15256Wooden Shelves Wc (Upper) - 40.1Item no. 55382Wooden Shelf Top
- 41
Item no. 15257Wooden Shelves We (Bottom) - 42
Item no. 15154Stop For Shelves - 43
Item no. 38865Fan - 44Item no. 34788Filter box
- 44.1Item no. 34789Filter
- 45
Item no. 10814Bottom Grill 2016 - 45Item no. 55691Bottom Grill for Lock
- 45.1Item no. 55395Lock Gasket
- 45.2Item no. 55673Lock Pad
- 46Item no. 34827Sensor
- 47Item no. 11487Drip Tray
- 48Item no. 34828Air duct board A foam
- 49
Item no. 12772Bottom Hinge Right 2016 - 50
Item no. 14109Condenser - 51
Item no. 12185Door Support - 52
Item no. 12761Bottom Hinge Left 2016 - 53Item no. 34807Air circulation gasket
- 54Item no. 55383Compressor Bracket
- 55Item no. 55692Spacer
- 56
Item no. 38896Adjustable Feet - 57Item no. 54312Condenser Fan
- 57.1
Item no. 13504Fan Cover - 58Item no. 14224Evaporating Tube
- 59Item no. 54316Drain Pipe
- 96
Item no. 13017Upper Hinge Left 2016 - 97Item no. 31372Key
- 98
Item no. 38929Door axis
