Designed for GN1/1 pans, not supplied
Strong castors as option

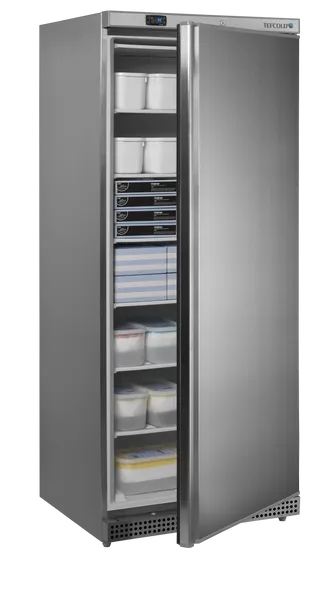

Storage Freezer GN2/1
UF600S
Item no.: 33641(Substitution for 16365 UF600S)
Brand: TEFCOLD
- Stainless steel cabinet
- Integrated handle
- Reversible solid door
- Electronic thermostat
- Fixed freezing shelves
- Lock
- Adjustable feet with rollers to rear
Technical specifications
Measures and Content
- Temperature Range-24 to -10 °C
- Climate Class4
- Gross / Net Weight112 / 107 kg
- Gross / Net Volume605 / 555 l
Design and Material
- Feet / Legs4 adjustable feet
- Castors2 rollers
- Exterior FinishSS430
- Interior FinishWhite ABS
- Interior LightNo
- Lock
- Door No & Type1 hinged solid door
- Shelves No & Type6 fixed freezing GN2/1
- Shelf DimensionsGN2/1
- Max load on Shelves110 kg/m²
- Door Reversible
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingStatic
- Type of DefrostManual
- RefrigerantR600a
- Refrigerant Charge130 g
- Thermometer
Power and Consumption
- Max Ambient30°C at 55% RH
- Energy Consumption2.24 kWh/24h
- Annual Energy Cons.818 kWh/year
- Input Power190 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level45 dB(A)
Dimensions
- Internal Dimension (WxDxH)653 x 580 x 1680 mm
- External Dimension (WxDxH)777 x 695 x 1895 mm
- Packed Dimension (WxDxH)850 x 770 x 2070 mm
- 40ft Container Load 42 pcs
- GTIN / EAN5708181994082
Downloads
Spare parts
- 01
Item no. 12952Top Hinge - 02
Item no. 10670Hook Of Lock - 04Item no. 34880Front panel Grey 2021
- 05
Item no. 10682Lock - 06
Item no. 14060Thermostat XR02CX 2 Probe Blue - 07
Item no. 12857Hinge Axis - 08
Item no. 12781Bushing For Diameter 6,6 mm Pin - 09
Item no. 12595Gasket - 10
Item no. 34887Door SS 2021 - 12
Item no. 12743Bottom Hinge - 13
Item no. 14461Evaporator Support - 14Item no. 14262Evaporator
- 15
Item no. 14555Adjustable Foot - 18
Item no. 13657Junction Box - 19
Item no. 11730Compressor HTH14AA R600A - 20Item no. 13376Condenser Fan SA1238A2
- 22
Item no. 13546Fan Support - 23
Item no. 14122Condenser - 24
Item no. 11232Rear Grill - 25
Item no. 14441Evaporator Fixer Set L-R - 26
Item no. 13896Probe NTC Dixell/Carel 10 Kohm - 27Item no. 10887Bottom Panel Support
- 28
Item no. 10874Bottom Panel Hexagonal SS403 - 35
Item no. 14631Castor 60 mm Without Brake - 36
Item no. 14630Castor 60 mm With Brake - 37
Item no. 14604Leg 85-115 mm - 40
Item no. 10676Keys For 10682
