Strong handle
Adjustable false base

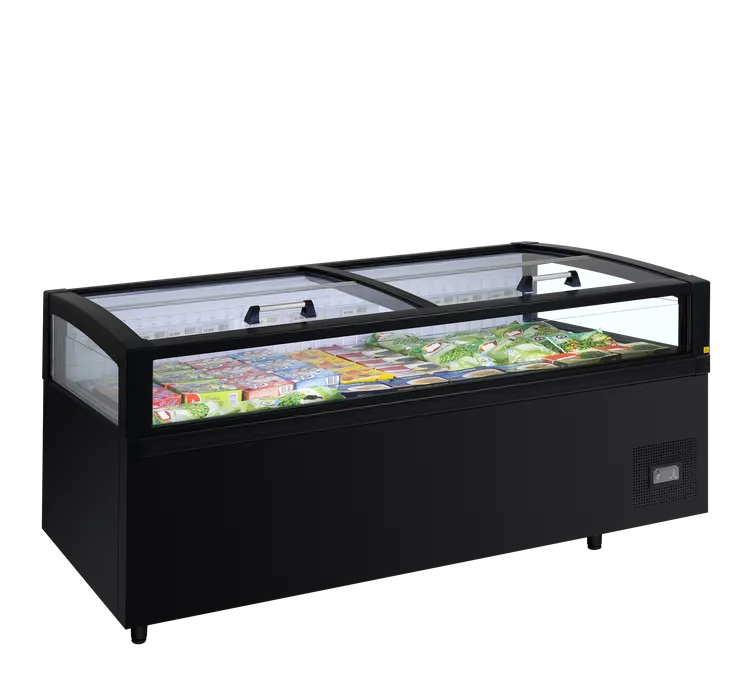

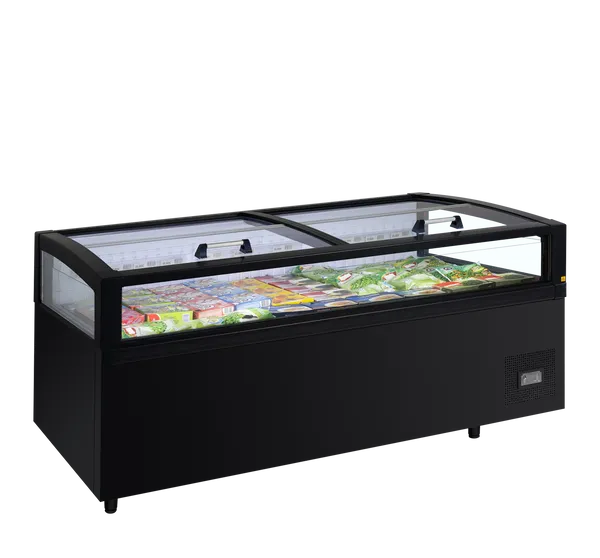

Supermarket Cooler / Freezer
View 200 CF VS B
Item no.: 66241
Brand: TEFCOLD
- Great product visibility
- Easily switchable between cooler and freezer
- Energy saving variable speed compressor
- Front to back sliding glass lids for easy access
- Triple glazed insulated glass on all 3 sides
- LED interior light
- Digital controller and temperature display
- Adjustable false base
Technical specifications
Measures and Content
- Gross / Net Weight210 / 166 kg
- Insulation Density42 kg/m³
- Total Display Area1.5 m²
- Temperature Range-22 to +10 °C
- Climate Class3
- Gross / Net Volume995 / 613 l
Design and Material
- Exterior FinishBlack RAL9005
- Interior FinishWhite
- Lid No & Type2 tempered glass sliding lids
- Divider System
- Number of dividers2 pcs
- Feet / Legs4 adjustable feet
- Interior LightLED
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingStatic
- Type of DefrostAutomatic, hot gas
- RefrigerantR290
- Refrigerant Charge113 g
- Thermometer
Power and Consumption
- Energy ClassD
- EPREL No2140727
- Annual Energy Cons.3518 kWh/year
- Energy Consumption9.64 kWh/24h
- EEI45.1 %
- Input Power520 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level52 dB(A)
Dimensions
- External Dimension (WxDxH)1953 x 980 x 970 mm
- Packed Dimension (WxDxH)2060 x 1066 x 1028 mm
- 40ft Container Load 22 pcs
- GTIN / EAN5708181752033
- Internal Dimension (WxDxH)1798 x 820 x 880 mm
Downloads
Description
Spare parts
- 02Item no. 20419Leveling Foot 70-90mm
- 03
Item no. 47951Control Panel Box - 04
Item no. 47952Control Panel - 05Item no. 33109Controller XRi77Cx
- 06
Item no. 47953Transparent Plastic Cover - 07Item no. 47954Frontal Bumper Bar Profile
- 08Item no. 47955Bumper Bar Profile
- 09
Item no. 47956Bumper Bar Terminal - 10
Item no. 47957Bumper End Cap - 11Item no. 53993Front Glass 1802x175mm
- 12
Item no. 47959Side Glass - 13Item no. 53994Lower Glass Lid
- 14Item no. 53995Upper Sliding Glass Lid
- 15
Item no. 47962Handle - 16Item no. 33107Electrical Box Connection
- 19Item no. 53996LED Transformer
- 20
Item no. 47963Side Cover Antracit - 20
Item no. 47964Side Cover White - 21
Item no. 15749Hot Gas Valve Coil 230V-50Hz - 22
Item no. 15746Hot Gas Valve - 23
Item no. 15696Filter - 24
Item no. 14201Left Condenser - 25
Item no. 13522Fan Motor - 26Item no. 47965Compressor Embraco FMFT 415U R290 230V 60-150Hz
- 27Item no. 33115Embraco CF10C01 inverter
- 28
Item no. 47966Heater Tranformer - 29
Item no. 47967Transformer - 30
Item no. 11600Water Tank Cover - 31
Item no. 13283Overflow Protection - 32
Item no. 11599Water Tank - 33
Item no. 47968Water Hose - 34Item no. 53997Front Triple Glass
- 35Item no. 53998Right Side Triple Glass
- 36Item no. 53999Left Side Triple Glass
- 37Item no. 15524LED 1100mm strip
- 37Item no. 54000800mm light strip
- 38Item no. 47973Glass Lid Bumper Profile
- 39Item no. 15540LED Cover
- 40
Item no. 47974Electronic Filter
