Strong handle
Adjustable false base

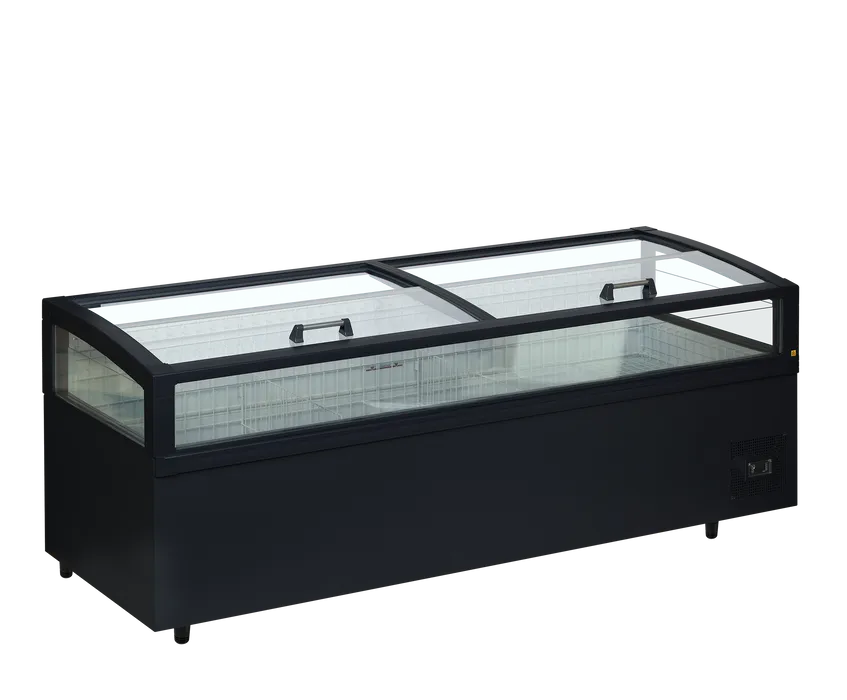

Supermarket Cooler / Freezer
View 250 CF VS B
Item no.: 66240
Brand: TEFCOLD
- Great product visibility
- Easily switchable between cooler and freezer
- Energy saving variable speed compressor
- Front to back sliding glass lids for easy access
- Triple glazed insulated glass on all 3 sides
- LED interior light
- Digital controller and temperature display
- Adjustable false base
Technical specifications
Measures and Content
- Temperature Range-22 to +10 °C
- Climate Class3
- Gross / Net Weight220 / 175 kg
- Gross / Net Volume1320 / 860 l
- Insulation Density42 kg/m³
- Total Display Area1.93 m²
Design and Material
- Feet / Legs4 adjustable feet
- Exterior FinishBlack RAL9005
- Interior FinishWhite
- Interior LightLED
- LockNo
- Number of dividers2 pcs
- Divider System
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingStatic
- Type of DefrostAutomatic, hot gas
- RefrigerantR290
- Refrigerant Charge127 g
- Thermometer
Power and Consumption
- Energy ClassD
- EPREL No1786587
- Energy Consumption10.4 kWh/24h
- Annual Energy Cons.3796 kWh/year
- Input Power520 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level54 dB(A)
Dimensions
- Internal Dimension (WxDxH)2345 x 820 x 880 mm
- External Dimension (WxDxH)2500 x 980 x 970 mm
- Packed Dimension (WxDxH)2606 x 1066 x 1028 mm mm
- 40ft Container Load 16 pcs
- GTIN / EAN5708181752026
Downloads
Description
Spare parts
- 02Item no. 20419Leveling Foot 70-90mm
- 03
Item no. 47951Control Panel Box - 04
Item no. 47952Control Panel - 05Item no. 33109Controller XRi77Cx
- 06
Item no. 47953Transparent Plastic Cover - 07Item no. 47954Frontal Bumper Bar Profile
- 08Item no. 47955Bumper Bar Profile
- 09
Item no. 47956Bumper Bar Terminal - 10
Item no. 47957Bumper End Cap - 11Item no. 47958Front Glass
- 12
Item no. 47959Side Glass - 13Item no. 47960Lower Glass Lid
- 14Item no. 47961Upper Sliding Glass Lid
- 15
Item no. 47962Handle - 16Item no. 33107Electrical Box Connection
- 19Item no. 33102LED Transformer
- 20
Item no. 47963Side Cover Antracit - 20
Item no. 47964Side Cover White - 21
Item no. 15749Hot Gas Valve Coil 230V-50Hz - 22
Item no. 15746Hot Gas Valve - 23
Item no. 15696Filter - 24
Item no. 14201Left Condenser - 25
Item no. 13522Fan Motor - 26Item no. 47965Compressor Embraco FMFT 415U R290 230V 60-150Hz
- 28
Item no. 47966Heater Tranformer - 29
Item no. 47967Transformer - 30
Item no. 11600Water Tank Cover - 31
Item no. 13283Overflow Protection - 32
Item no. 11599Water Tank - 33
Item no. 47968Water Hose - 34Item no. 47969Front Triple Glass
- 35
Item no. 47970Side Triple Glass Right - 36
Item no. 47971Side Triple Glass Left - 37Item no. 15524LED 1100mm strip
- 37Item no. 47972LED Light
- 38Item no. 47973Glass Lid Bumper Profile
- 39Item no. 15541LED Cover
- 40
Item no. 47974Electronic Filter
