Vertical internal light
Digital controller
Display Cooler
Atom Maxi C2DBB
Item no.: 52328
Brand: TEFCOLD
- Great product presentation
- Black interior and exterior
- Low energy consumption
- Self-closing glass doors
- Double glazed tempered glass
- Internal vertical LED light
- Ventilated cooling

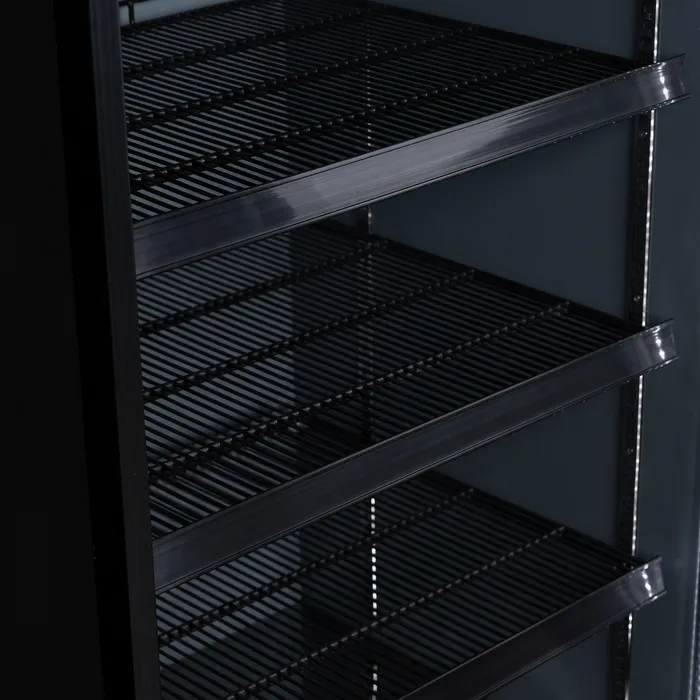

- Adjustable shelves behind each door
- Stainless steel base with mirror effect
- Digital controller and temperature display
- Freezer option available
Technical specifications
Measures and Content
- Cans 330 ml1120 pcs
- Cans 500 ml672 pcs
- Bottles 330 ml630 pcs
- Bottles 500 ml PET560 pcs
- Total Display Area1.58 m²
- Temperature Range-1 to +10 °C
- Climate Class3
- Gross / Net Weight197 / 179 kg
- Gross / Net Volume1081 / 809 l
Design and Material
- Door No & Type2 hinged glass doors
- Door ReversibleNo
- Shelves No & Type10 adjustable
- Shelf ColorBlack
- Shelf Dimensions566 x 480 mm
- Max load on Shelves135 kg/m²
- Castors4 castors
- Exterior FinishBlack RAL9005
- Interior FinishBlack
- Interior LightLED
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingVentilated
- Type of DefrostAutomatic-Off Cycle
- RefrigerantR290
- Refrigerant Charge110 g
- Thermometer
Power and Consumption
- Energy ClassB
- EPREL No1556583
- Max Ambient25°C at 60% RH
- Energy Consumption4.17 kWh/24h
- Annual Energy Cons.1522 kWh/year
- Input Power460 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level62 dB(A)
Dimensions
- Internal Dimension (WxDxH)1163 x 595 x 1568 mm
- External Dimension (WxDxH)1253 x 710 x 2003 mm
- Packed Dimension (WxDxH)1278 x 760 x 2090 mm
- 40ft Container Load 27 pcs
- GTIN / EAN5708181736415
Downloads
Description
Spare parts
- 00Item no. 52036Top Hinge Right
- 00Item no. 52037Top Hinge Left
- 00Item no. 52038Bottom Hinge Left
- 00Item no. 52039Bottom Hinge Right
- 00Item no. 52041Light Switch Green
- 00Item no. 54973Mullion Black
- 00Item no. 55850Rear Grill
- 00Item no. 69315Door corner guards (Black / Right)
- 00Item no. 69316Door corner guards (Black / Left)
- 01Item no. 52020Top Panel Black RAL9005
- 02Item no. 52009Glass Door Left w/ Handle, Black RAL9005
- 03
Item no. 52030Front Grill Black RAL9005 - 03Item no. 67621Locking Latch
- 03Item no. 67622Lock and Keys
- 03Item no. 67625Front Grill Black RAL9005 /w Lock Hole
- 04Item no. 47642Castor
- 05Item no. 52008Glass Door Right w/ Handle, Black RAL9005
- 06Item no. 47565Digital Thermostat Carel
- 07Item no. 54967Evaporator Supporter Black
- 08Item no. 47665Evaporator
- 09Item no. 47629Evaporator Fan Motor
- 11Item no. 54972Shelf 12mm Black
- 11Item no. 54974Price Holder 35,2mm Black
- 11Item no. 68887Price Holder 42mm Black
- 12Item no. 47647K-Clip
- 13
Item no. 47631Door Seal - 14
Item no. 47667Condenser - 15Item no. 47632LED Light Left
- 16Item no. 47633LED Light Right
- 17Item no. 46053Fan Blade
- 18Item no. 46052Fan Motor
- 19
Item no. 47820Compressor K480DU - 20Item no. 47583Filter Drier
- 21Item no. 47638LED Driver
