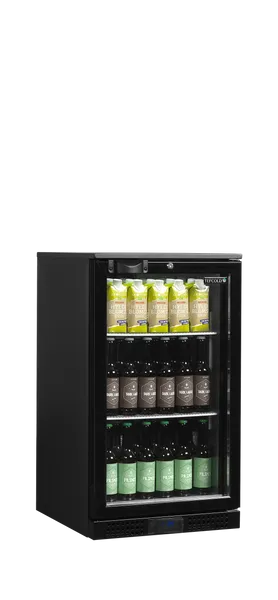

Backbar Cooler
DB106H
Item no.:44724(Substitution for 15860 DB105H)
Brand:TEFCOLD
- Approx. 56% more energy efficient than previous range
- Double glazed tempered glass
- Energy saving variable speed compressor
- Ventilated cooling for fast pull-down and even temperature
- Easy access electronic thermostat
- Adjustable shelves
- LED interior light
Technical specifications
Measures and Content
- Gross / Net Weight45 / 40 kg
- Bottles 330 ml70 pcs
- Bottles 500 ml PET70 pcs
- Cans 330 ml113 pcs
- Cans 500 ml96 pcs
- Gross / Net Volume105 / 92 l
- Total Display Area0.29 m²
- Temperature Range+2 to +10 °C
- Climate Class4
Design and Material
- Exterior FinishBlack RAL9005
- Interior FinishStucco aluminium
- Door No & Type1 hinged glass door
- Door Reversible
- Shelves No & Type2 wire shelves white
- Shelf ColorWhite
- Shelf Dimensions395x350 mm
- Max load on Shelves196 kg/m²
- Feet / Legs4 adjustable feet
- Lock
- Interior LightLED
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingVentilated
- Type of DefrostAutomatic
- Refrigerant Charge45 g
- RefrigerantR600a
- Thermometer
Power and Consumption
- Display cabinet familyVC4
- Energy ClassA
- EPREL No1431312
- Max Ambient+30°C, 55% RH
- Annual Energy Cons.310 kWh/year
- Energy Consumption0.85 kWh/24h
- EEI8 %
- Input Power95 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level44 dB(A)
Dimensions
- 40ft Container Load 160 pcs
- GTIN / EAN5708181713980
- External Dimension (WxDxH)500 x 545 x 870 mm
- Internal Dimension (WxDxH)410 x 418 x 720 mm
- Packed Dimension (WxDxH)585 x 575 x 940 mm
Downloads
Description
Spare parts
- 02Item no. 72995Baffle Fixing Bracket
- 03
Item no. 14285Evaporator - 04
Item no. 45263Heat Exchanger till 04-2026 - 04Item no. 73010Suction Tube
- 05
Item no. 13411Evaporator Fan 12 VDC till 04-2026 - 05Item no. 47476Fan
- 06Item no. 47477Fan Cover
- 07
Item no. 13561Finger Guard - 08
Item no. 15585LED Light - 09
Item no. 15447Light Cover - 10
Item no. 15356End Piece For Lamp Cover - 11
Item no. 10684Lock - 12
Item no. 10673Key - 13
Item no. 12956Top Hinge - 14
Item no. 12995Top/Down Hinge Axle Sleeve - 15
Item no. 12682Handle - 16Item no. 45267Glass Door
- 17
Item no. 10063Nylon Washer - 18
Item no. 12750Lower Hinge - 19
Item no. 12603Gasket - 20
Item no. 15202Wire Shelf 10 mm Pitch - 21Item no. 47478Evaporator Cover
- 22
Item no. 15084Shelf Clip - 23Item no. 47480Rail For Shelves
- 24
Item no. 45269Thermostat Box - 25
Item no. 42057Thermostat DT-01 till 04-2026 - 25
Item no. 45270DT-01 Circuit Board till 04-2026 - 25Item no. 73023Thermostat DT-02B from 04-2026
- 26
Item no. 71659NTC Probe for Thermostat DT-01 400mm till 04-2026 - 26Item no. 72994Temperature Probe for Thermostat DT-02B
- 27
Item no. 13748Light switch black - 29Item no. 72993Wire Duct
- 32
Item no. 10059Nut - 33
Item no. 14571Adjustable Foot - 36
Item no. 14169Condenser Air Conductor till 04-2026 - 36
Item no. 14170Condenser Air Conductor - 37Item no. 73017Condenser Fan
- 38
Item no. 14134Condenser till 04-2026 - 38
Item no. 14136Condenser - 39
Item no. 13726Wire Clip - 40Item no. 11449Drain Pipe
- 41Item no. 11423Clamp For Drain Pipe
- 42
Item no. 10048Filter Drier Bracket - 43
Item no. 15711Filter Drier - 44
Item no. 45272Compressor AZ100CY1 - 45
Item no. 11493Drip Tray till 04-2026 - 45Item no. 72992Evaporation Tray
- 46Item no. 47482Back Grill
- 47Item no. 47483Power Supply till 04-2026
- 47Item no. 51851Power Supply
- 48
Item no. 13728Wire Holder - 50Item no. 73008Compressor connecting pipe
- 51
Item no. 13356Condenser Fan Bracket - 52Item no. 47484Fan Box Cover
