Baskets
Lock

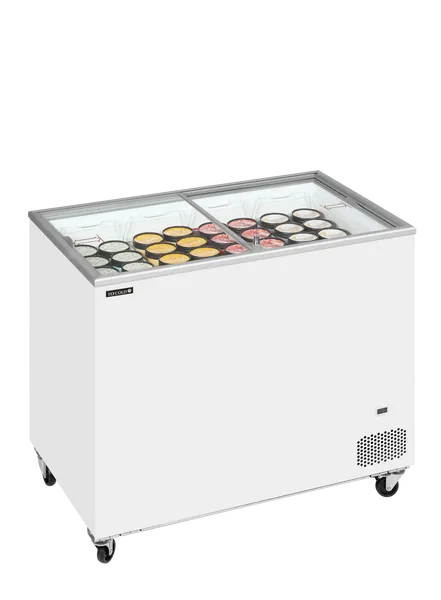

Ice Cream Freezer
IC301SC
Item no.: 49739(Substitution for 16224 IC300SC)
Brand: TEFCOLD
- Includes full set of baskets
- Flat sliding glass lids with lock
- Great branding possibilities
- Digital thermometer
- Powder coated white steel inner liner
- Castors with brake
- Climate class 5 for high performance in warm surroundings
Technical specifications
Measures and Content
- Temperature Range-24 to -14 °C
- Climate Class5
- Gross / Net Weight65 / 55 kg
- Gross / Net Volume296 / 255 l
Design and Material
- Castors4 wheels, 2 with brake
- Exterior FinishWhite
- Interior FinishWhite painted steel
- Lock
- Lid No & Type2 flat sliding temp. glass lids
- Basket No & Type4 Wire baskets, white
- Max No. of Baskets4 pcs
Cooling and Functions
- Type of ControllerMechanical
- Type of CoolingStatic
- Type of DefrostManual
- RefrigerantR290
- Refrigerant Charge85 g
- Thermometer
Power and Consumption
- Energy ClassD
- EPREL No1764850
- Energy Consumption1.78 kWh/24h
- Annual Energy Cons.648 kWh/year
- Input Power141 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level45 dB(A)
Dimensions
- Internal Dimension (WxDxH)890 x 510 x 655 mm
- External Dimension (WxDxH)1010 x 630 x 892 mm
- Packed Dimension (WxDxH)1100 x 750 x 940 mm
- 40ft Container Load 64 pcs
- GTIN / EAN5708181733186
Downloads
Description
Spare parts
- 02
Item no. 13190Upper Lid - 03
Item no. 13040Bottom Glass Lid With Frame - 04
Item no. 10720Lock With Keys - 05Item no. 15772Ice Scraper
- 06Item no. 54964Fan Motor Bracket
- 07Item no. 54963Fan Motor 1238 Type
- 08
Item no. 11795Compressor NUT55CAB R290 - 09
Item no. 14000Thermostat K50B-S3564 Ranco - 11Item no. 54350Condenser
- 14Item no. 38818Dryer
- 19
Item no. 11553Inner Drain Plug - 20
Item no. 11465Drain Plug Outer White - 21
Item no. 11852Grill For Compressor Compart. - 24
Item no. 14674Wheel With Brake U-Mount - 25
Item no. 14663Wheel W/O Brake U-Mount - 26
Item no. 14653U-Shaped Lock For Wheels - 27
Item no. 13793Thermometer Digital White - 28
Item no. 14733Wire Basket For Div 218 mm - 29
Item no. 10734Rubber Cap For U-Lock - 44
Item no. 11212Plastic Strip For Alu Frame
