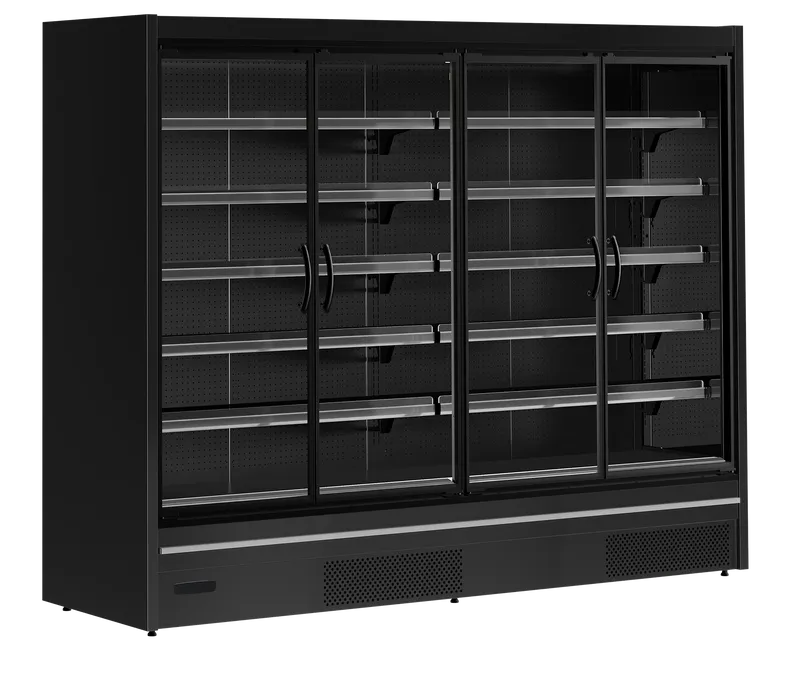

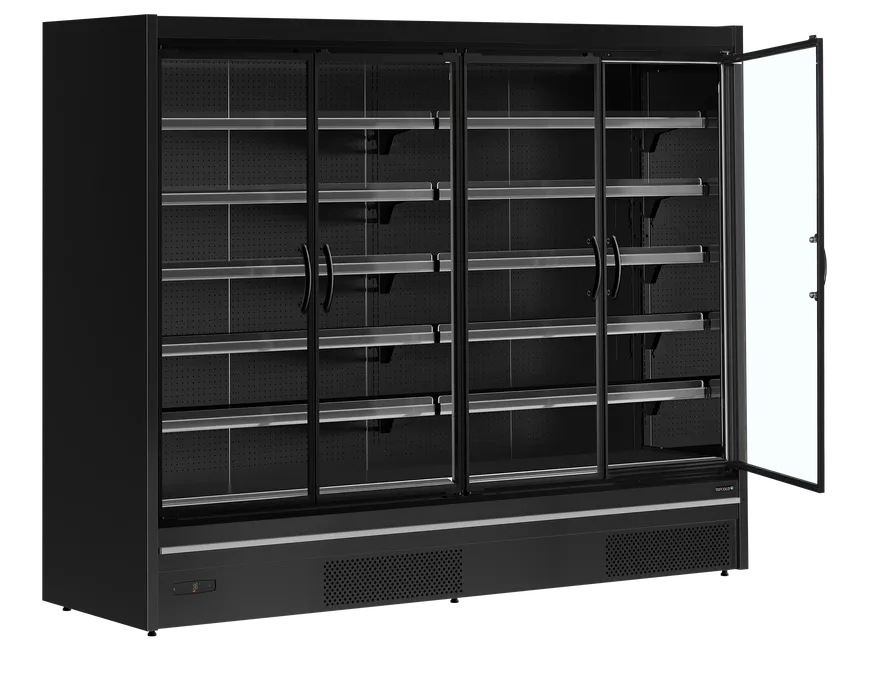

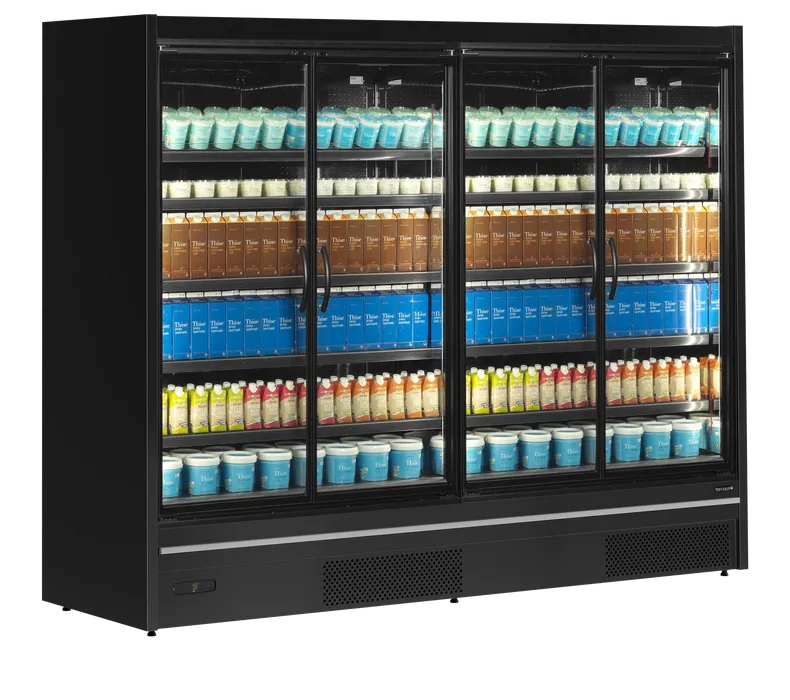

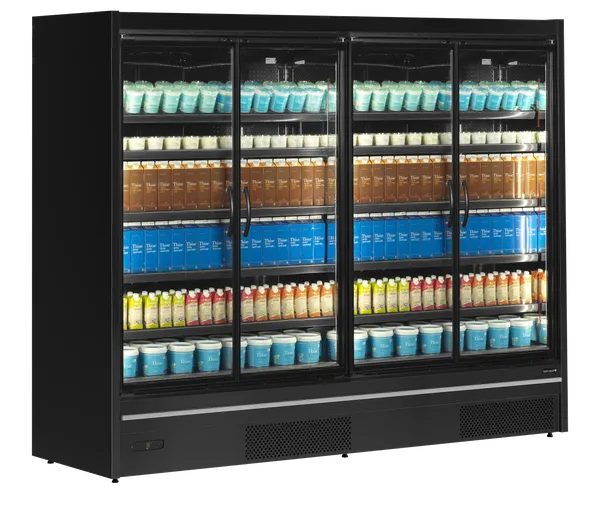

Supermarket Multideck Cooler
MDCA2500HB
Item no.: 55400
Brand: TEFCOLD
- EU Energy Class B
- Temperature Class 3M1
- Excellent product visibility
- Controller with Bluetooth and NFC connectivity
- Can be multiplexed - Create uninterrupted continuous line
- Adjustable shelves with tilting function
- Ticket strip and acrylic front riser as standard
- Solid 40 mm endwalls with mirrored interior
- Internal vertical and horizontal LED light
- Stainless steel bumper bars
- Energy saving variable speed compressor
- Multiplexing kit as accessory
Technical specifications
Measures and Content
- Gross / Net Weight560 / 512 kg
- Insulation Density40 kg/m³
- Temperature Range-1 to +5 °C
- Gross / Net Volume2098 / 1480 l
- Total Display Area3.55 m²
- Climate Class3
Design and Material
- Exterior FinishBlack RAL9005
- Interior FinishBlack RAL9005
- Door No & Type4 hinged glass door
- Shelves No & Type10 black sheet metal
- Max load on Shelves120 kg/m²
- Shelf Dimensions1250x400
- Feet / LegsAdjustable feet
- Shelf ColorBlack
- Interior Light
Cooling and Functions
- Type of ControllerElectronic
- Type of DefrostAutomatic
- RefrigerantR290
- Refrigerant Charge2x130 g
- Thermometer
Power and Consumption
- Max Ambient25°C at 60% RH
- Input Power1114 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level60 dB(A)
- Energy ClassB
- EPREL No2297015
- Annual Energy Cons.2705 kWh/year
- Energy Consumption7.41 kWh/24h
- EEI14.1 %
Dimensions
- External Dimension (WxDxH)2580 x 805 x 2095 mm
- Packed Dimension (WxDxH)2700 x 900 x 2400 mm
- 40ft Container Load 8 pcs
- GTIN / EAN5708181741211
- Internal Dimension (WxDxH)2500 x 565 x 1512 mm
Downloads
Description
Spare parts
- 01Item no. 55576Shelf Bracket
- 02Item no. 55603Shelf
- 03Item no. 55604Shelf Stopper
- 04Item no. 55605Price Tag
- 05Item no. 55606Bottom Shelf
- 06Item no. 55607Air Inlet
- 07.1Item no. 55608Door Right
- 07.2Item no. 55609Door Left
- 08Item no. 54878Adjustable Feet
- 09Item no. 55625Top Panel
- 10Item no. 55626Bottom Panel
- 11Item no. 55627Bottom Grill
- 12Item no. 55628Bumper
- 13Item no. 55588Bumper cover
- 14.1Item no. 55589End Wall Right
- 14.2Item no. 55590End Wall Left
- 15Item no. 55591Mirror
- 16Item no. 55592Condenser
- 17Item no. 55614Evaporator
- 18Item no. 55594Condenser Fan Motor
- 19Item no. 55595Compressor
- 20Item no. 55596Evaporator Fan
- 21Item no. 55597Conderser Fan Blade
- 22Item no. 55598Thermostat
- 24Item no. 55599Water Tray
- 25.1Item no. 55600Vertical LED
- 25.2Item no. 55615Horizontal LED
- 26Item no. 55624LED Power Supply
- 27Item no. 66886Adiabatic panel
