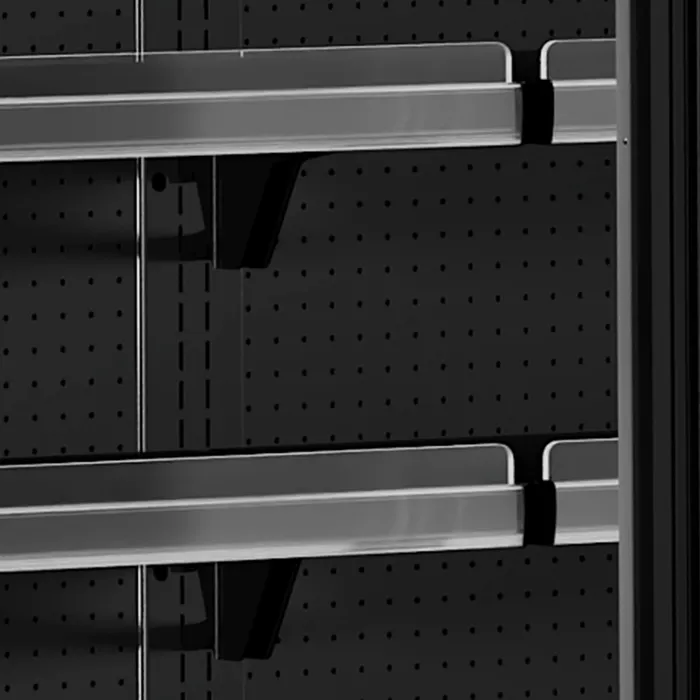

Shelf risers and ticket strips

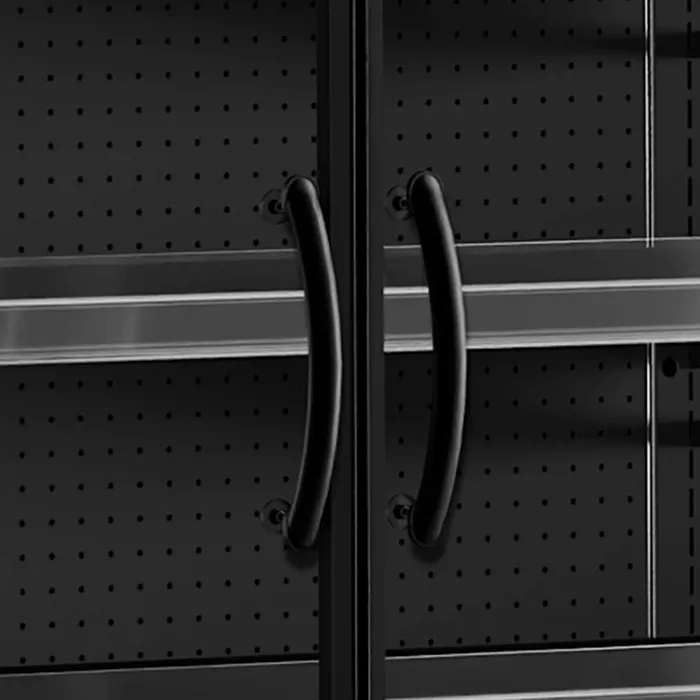

Strong handles

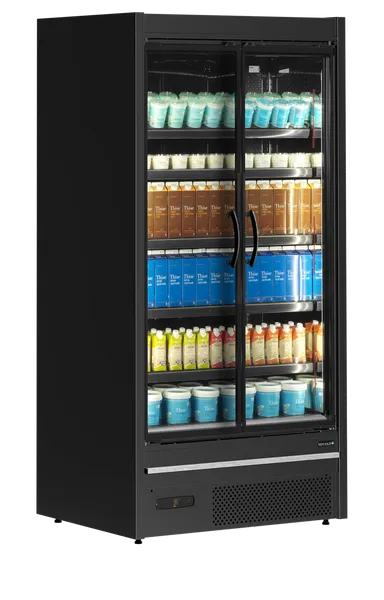

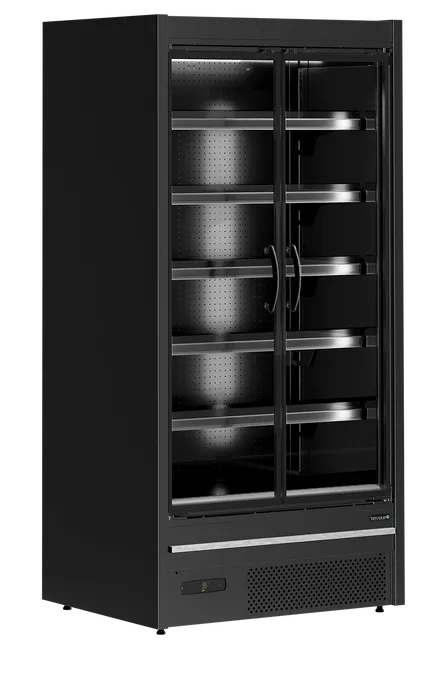

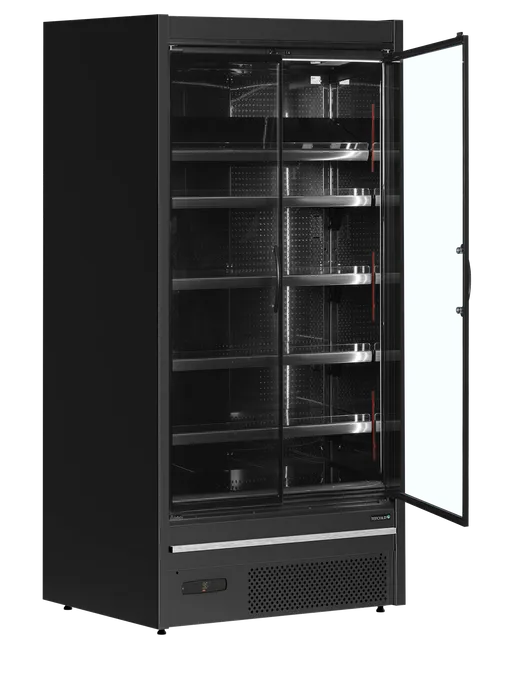

Supermarket Multideck Cooler
MDCA937HB
Item no.: 55389
Brand: TEFCOLD
- EU Energy Class B
- Excellent product visibility
- Controller with Bluetooth and NFC connectivity

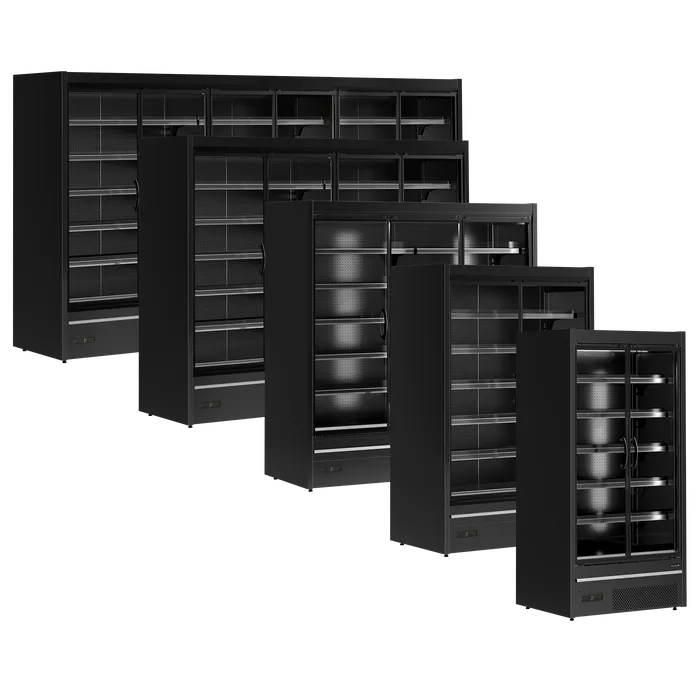

- Can be multiplexed - Create uninterrupted continuous line
- Adjustable shelves with tilting function
- Ticket strip and acrylic front riser as standard
- Solid 40 mm endwalls with mirrored interior
- Internal vertical and horizontal LED light
- Stainless steel bumper bars
- Energy saving variable speed compressor
- Multiplexing kit as accessory
Technical specifications
Measures and Content
- Temperature Range-1 to +5 °C
- Climate Class3
- Gross / Net Weight290 / 260 kg
- Gross / Net Volume786 / 555 l
- Insulation Density40 kg/m³
- Total Display Area1.29 m²
Design and Material
- Feet / LegsAdjustable feet
- Exterior FinishBlack RAL9005
- Interior FinishBlack RAL9005
- Interior Light
- LockNo
- Door No & Type2 hinged glass door
- Max load on Shelves120 kg/m²
- Shelf ColorBlack
- Shelf Dimensions937x400
- Shelves No & Type5 black sheet metal
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingVentilated
- RefrigerantR290
- Refrigerant Charge120 g
- Thermometer
Power and Consumption
- Energy ClassB
- EPREL No2143143
- Max Ambient25°C at 60% RH
- Energy Consumption4.32 kWh/24h
- Annual Energy Cons.1577 kWh/year
- Input Power795 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level60 dB(A)
Dimensions
- Internal Dimension (WxDxH)937 x 565 x 1512 mm
- External Dimension (WxDxH)1017 x 805 x 2095 mm
- Packed Dimension (WxDxH)1150 x 900 x 2400 mm mm
- 40ft Container Load 26 pcs
- GTIN / EAN5708181741150
Downloads
Description
Spare parts
- 01Item no. 55576Shelf Bracket
- 02Item no. 55577Shelf
- 03Item no. 55578Shelf Stopper
- 04Item no. 55579Price Tag
- 05Item no. 55580Bottom Shelf
- 06Item no. 55581Air Inlet
- 07.1Item no. 55582Door right
- 07.2Item no. 55583Doors left
- 08Item no. 54878Adjustable Feet
- 09Item no. 55584Top Panel
- 10Item no. 55585Bottom Panel
- 11Item no. 55586Bottom Grill
- 12Item no. 55587Bumper
- 13Item no. 55588Bumper cover
- 14.1Item no. 55589End Wall Right
- 14.2Item no. 55590End Wall Left
- 15Item no. 55591Mirror
- 16Item no. 55592Condenser
- 17Item no. 55593Evaporator
- 18Item no. 55594Condenser Fan Motor
- 19Item no. 55595Compressor
- 20Item no. 55596Evaporator Fan
- 21Item no. 55597Conderser Fan Blade
- 22Item no. 55598Thermostat
- 24Item no. 55599Water Tray
- 25.1Item no. 55600Vertical LED
- 25.2Item no. 55601Horizontal LED
- 26Item no. 55602LED Power Supply
- 27Item no. 66886Adiabatic panel
