Granite table top
Guides for pizza trays

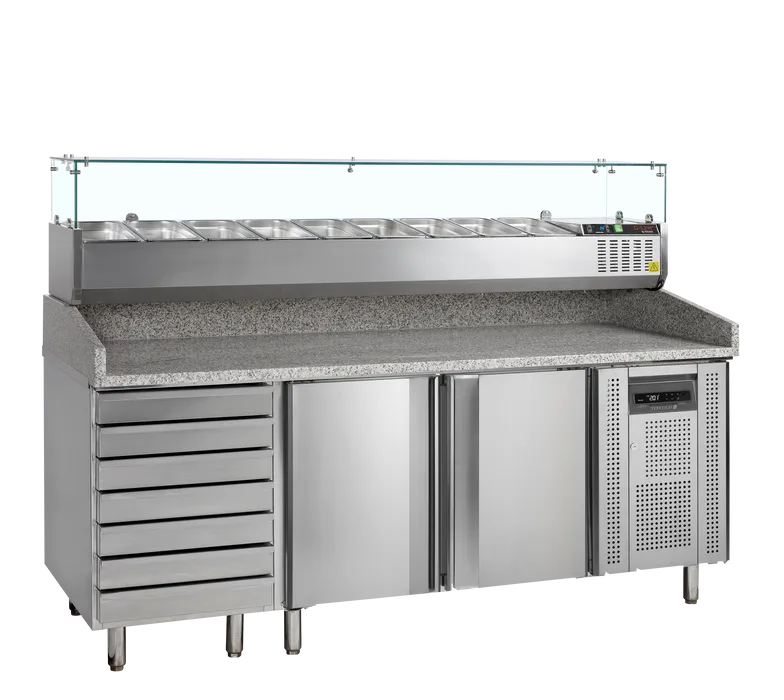

Pizza Table incl. Topping Unit
PT1310 + GVC38-200
Item no.: 67415 (Substitution for 17830 PT1310 + VK38-200)
- Stainless steel
- Ambient temperature drawers section
- Guides for 7 pizza trays in each door (400x600 mm)
- GVC38-200 Topping unit for GN1/3 pans
- Granite worktop
- Ventilated cooling
- Automatic defrost
- Self-closing doors
Technical specifications
Measures and Content
- Temperature Range+2 to +10 °C
- Climate Class4
- Gross / Net Weight372.5 / 357 kg
- Gross / Net Volume390 / 370 l
- Capacity GN Pans9 x GN1/3 pcs
Design and Material
- Feet / Legs8 adjustable legs
- Exterior FinishSS201 / SS304
- Interior FinishSS201 / SS304
- Door No & Type2 hinged self-closing doors
- Shelves No & Type14 guides for pizza trays
- Shelf Dimensions400 x 600 mm
- Drawers7 dough drawers pcs
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingStatic / Ventilated
- Type of DefrostAutomatic
- RefrigerantR600a
- Refrigerant Charge95 + 45 g
- Thermometer
Power and Consumption
- Energy ClassB
- EPREL No99149
- Max Ambient30°C at 55% RH
- Energy Consumption2.41 kWh/24h
- Annual Energy Cons.880 kWh/year
- Input Power300 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level42 dB(A)
Dimensions
- Internal Dimension (WxDxH)1052 x 630 x 589 mm
- External Dimension (WxDxH)2045 x 800 x 1448 mm
- Packed Dimension (WxDxH)2050 x 840 x 1330 mm
- 40ft Container Load 28 pcs
- GTIN / EAN5708181752507
Downloads
Description
Spare parts
- A01
Item no. 14575Feet - A02
Item no. 10499Clips Glass Cover - A04
Item no. 10622Side Glass - A05Item no. 35045Bushing
- A06Item no. 35046Glass Fixed Bolt
- A07Item no. 35047Glass Linked Clip
- A08Item no. 35048Glass Clip Fixed Nut
- A09Item no. 35073Top Glass
- A10Item no. 35064Front Glass
- A11
Item no. 11869Unit Room Cover For Compressor - A12
Item no. 15722Filter Drier 20 G - A14
Item no. 14193Condensor - A15
Item no. 10068Plastic Cap - A16
Item no. 11322Unit Side - A20
Item no. 13318Cond./Evap. Fan Rah1238B - A21
Item no. 11726Compressor HDL140A R600 - A23
Item no. 13754Main Switch - A24Item no. 14061Thermostat XR02CX 2 Probes
- A26
Item no. 14763Divider For GN1/3 Pans 326x26 mm - A27
Item no. 14770Divider For GN1/6 Pans 178x16 mm - A28
Item no. 10020Filter 182 x 215 mm - A29Item no. 35077Air Flow Window
- A30Item no. 51615Sensor
- A30Item no. 55807Sensor
