Frameless door
3 LEDs - Vertical and horizontally

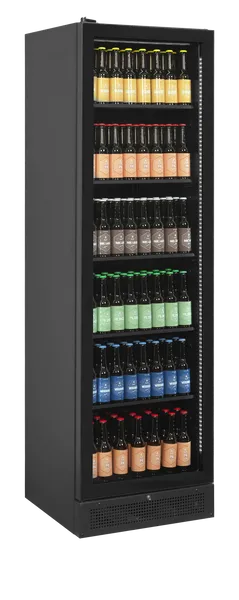

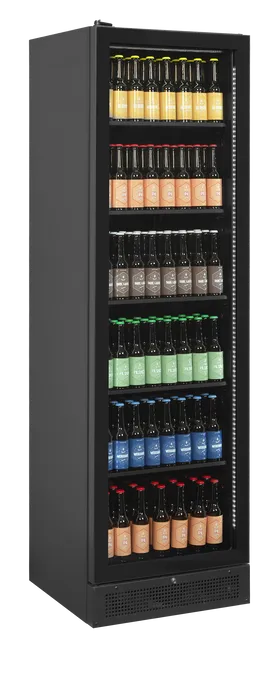

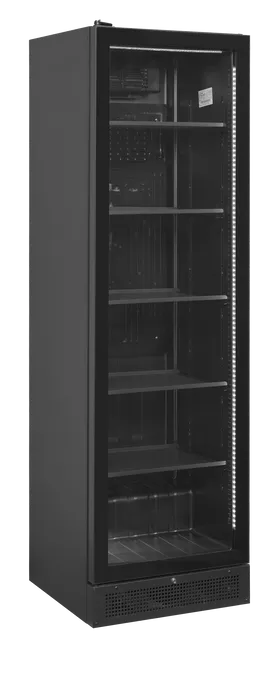

Bottle Cooler with Left Hand Hinged Door
SCU1425 FRAMELESS L/H
Item no.: 53323(Substitution for 43910 SCU1425 FRAMELESS L/H)
Brand: TEFCOLD

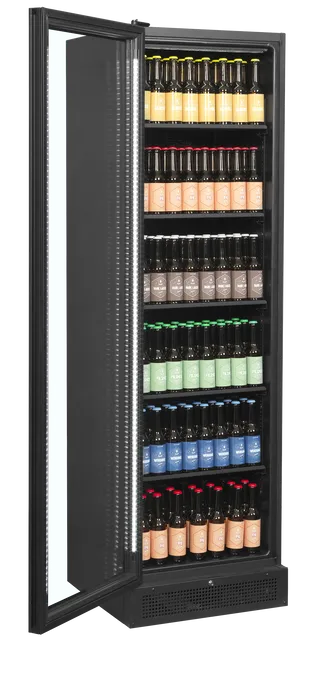

- Left hinged glass door
- Elegant design
- Frameless glass door
- Black interior and exterior
- Extra high glass door
- Great product presentation

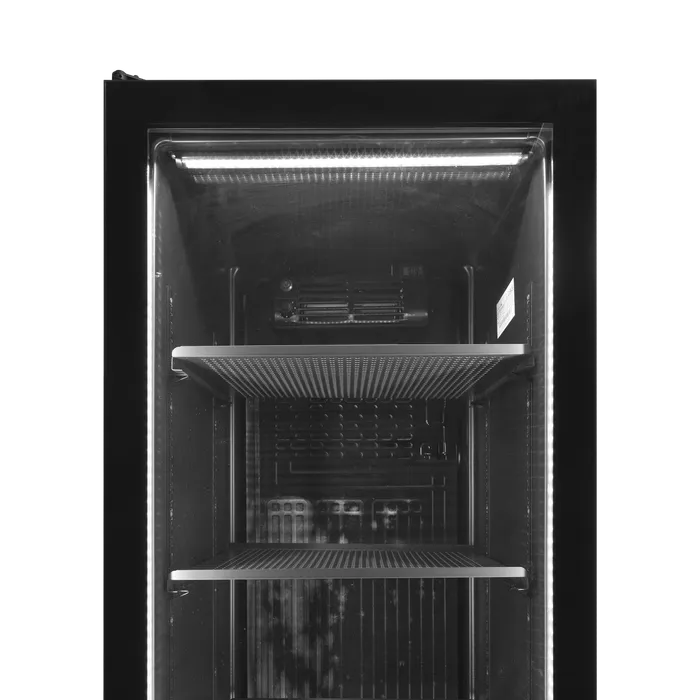

- Internal vertical and horizontal LED light
- Fan assisted cooling
Technical specifications
Measures and Content
- Gross / Net Weight87.5 / 77.5 kg
- Bottles 330 ml272 pcs
- Bottles 500 ml PET238 pcs
- Cans 330 ml441 pcs
- Cans 500 ml308 pcs
- Temperature Range+2 to +10 °C
- Climate Class4
- Gross / Net Volume387 / 347 l
Design and Material
- Exterior FinishBlack
- Interior FinishBlack ABS
- Door No & Type1 left hinged glass door
- Max load on Shelves196 kg/m²
- Shelf ColorBlack
- Shelf Dimensions492 x 405 mm
- Shelves No & Type5 black sheet metal
- Feet / Legs2 adjustable feet
- Castors2 rollers
- Interior LightLED inside door frame
- Lock
Cooling and Functions
- Type of ControllerMechanical
- Type of CoolingFan assisted
- Type of DefrostAutomatic
- RefrigerantR600a
- Refrigerant Charge85 g
- Thermometer
Power and Consumption
- Energy ClassD
- EPREL No575918
- Max Ambient30°C at 55% RH
- Annual Energy Cons.683 kWh/year
- Energy Consumption1.87 kWh/24h
- EEI38.9 %
- Input Power235 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level45 dB(A)
Dimensions
- External Dimension (WxDxH)595 x 595 x 1990 mm
- Packed Dimension (WxDxH)665 x 715 x 2150 mm
- 40ft Container Load 54 pcs
- GTIN / EAN5708181737443
- Internal Dimension (WxDxH)505 x 462 x 1742 mm
Downloads
Description
Spare parts
- 01
Item no. 45491Compressor LK118CY1 R600a 220-240V/50Hz RSCR - 02Item no. 54433Bottom Hinge Right
- 05
Item no. 14199Holder For Condenser 2015 - 06Item no. 33333Cover For Wires
- 08
Item no. 13531Fan Motor Int/Ext - 10
Item no. 12850Bottom Hinge Left - 11
Item no. 14014Thermostat Knob - 12Item no. 33379Digital Thermometer w/Black Frame
- 14
Item no. 32062Clip For Shelf Black - 15Item no. 33337Rail For Shelves Black 1374 mm.
- 16
Item no. 33338460 mm LED Strip 6500K 7LM - 17
Item no. 33339LED Cover - 18
Item no. 33340End Cap LED Light Black - 20Item no. 68858Metal Sheet Shelf Black
- 21Item no. 15494Connector For LED Wires
- 22
Item no. 33342Bottom Panel Hexagonal - 23
Item no. 11243Cover For Screw - 24
Item no. 10715Lock With Keys - 25
Item no. 14570Adjustable Foot - 26Item no. 11238Rear Grill Black
- 27Item no. 14198Fixing Clamp For Condenser
- 28
Item no. 11470Drip Tray - 29Item no. 48500Left Upper Hinge
- 34
Item no. 15721Filter Drier 20 G - 37Item no. 68523Door Spring Left
- 39
Item no. 33344Door Gasket Black - 42Item no. 54008Frameless Door Complete L/H
- 42Item no. 72229Door Complete L/H
- 48Item no. 71286Door Complete
- 49
Item no. 12864Hinge Bush - 50Item no. 68499Upper Hinge
- 51Item no. 71289LED UIP2 1690mm 6500K 13LM
- 52Item no. 71287Door LED Clip
- 53Item no. 71288Power Cable EU 2.9m
- 54Item no. 14607Big Plastic Roller
- 55Item no. 54461Wire Condenser
- 56
Item no. 13614Cable Cover - 58
Item no. 41011Horizontal LED Light - 59Item no. 54612LED Power Supply
- 60
Item no. 12987Top Hinge Right - 61Item no. 54460Rollbond Evaporator
- 63Item no. 68718Fan Cover
- 64
Item no. 34405Themostat 07B1687 Danfoss
