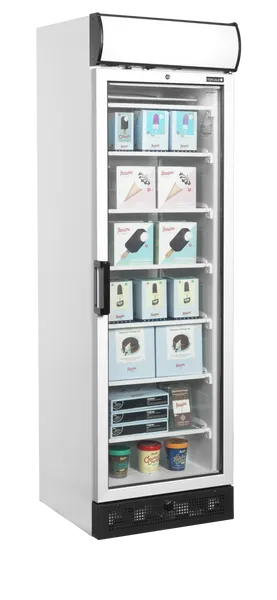

Display Freezer
UFFS371GCP
Item no.: 46986(Substitution for 32446 UFFS370GCP)
Brand: TEFCOLD
- Great product presentation
- Illuminated canopy
- Heated glass door
- Fixed freezing shelves
- Internal LED light
- Digital thermometer
- Defrost water drain
- Adjustable feet
Technical specifications
Measures and Content
- Temperature Range-24 to -14 °C
- Climate Class4
- Gross / Net Weight103 / 98 kg
- Gross / Net Volume300 / 270 l
- Total Display Area0.74 m²
Design and Material
- Feet / Legs2 adjustable feet
- Castors2 rollers
- Exterior FinishWhite
- Interior FinishWhite
- Interior LightLED
- Lock
- Door No & Type1 heated hinged glass door
- Door ReversibleNo
- Shelves No & Type6 fixed freezing shelves
- Shelf ColorChrome
- Shelf Dimensions470 x 413 mm
- Max load on Shelves110 kg/m²
- Canopy TypeD-Shape
Cooling and Functions
- Type of ControllerMechanical
- Type of CoolingStatic
- Type of DefrostManual
- RefrigerantR290
- Refrigerant Charge85 g
- Thermometer
Power and Consumption
- Energy ClassC
- EPREL No1533819
- Max Ambient30°C at 55% RH
- Energy Consumption8.32 kWh/24h
- Annual Energy Cons.3035 kWh/year
- Input Power570 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level40 dB(A)
Dimensions
- Internal Dimension (WxDxH)470 x 440 x 1555 mm
- External Dimension (WxDxH)595 x 640 x 1980 mm
- Packed Dimension (WxDxH)680 x 710 x 2050 mm
- 40ft Container Load 54 pcs
- GTIN / EAN5708181726416
Downloads
Description
Spare parts
- 01
Item no. 10221Canopy Base Black - 02
Item no. 12961Top Hinge Base Left/Right - 03
Item no. 10715Lock With Keys - 03
Item no. 12911Pin For Hinge - 04
Item no. 15629LED Power Supply 12 V 35 W - 05
Item no. 15515Holder For LED Strip - 06
Item no. 15650LED Strip 580 mm 7000K/7LM - 10
Item no. 10318Left/Right Side Cover Canopy - 11
Item no. 10308Cover For Canopy Opal - 12
Item no. 13644Green Control Lamp - 13
Item no. 13737Light Switch - 14
Item no. 12191Door Switch Black 14x30 mm - 15Item no. 14500Wire On Tube Evaporator
- 18
Item no. 13994Thermostat K50-3459 - 19
Item no. 12786Bushing For Hinge With Wires - 20
Item no. 13531Fan Motor Int/Ext - 21
Item no. 13390Cover For Internal Fan - 22
Item no. 15510End Cap LED Light - 22.0
Item no. 15367Fluorescent Tube 15W - 23
Item no. 10123Washer - 23
Item no. 15597LED Light Base - 24
Item no. 15592LED Light 410 mm - 25
Item no. 14965Plastic For Tube Freezing Shel - 25Item no. 71605
- 26
Item no. 15600LED Light Cover - 27
Item no. 14495Tilting Fixture For Frezing Ri - 27Item no. 71602
- 28
Item no. 14496Tilting Fixture For Frezing Sh - 28Item no. 71604
- 29
Item no. 11460Drain Plug - 30
Item no. 10721Lock With Keys - 34
Item no. 12064Door Gasket Black 585x1620 - 35
Item no. 12354Glass Door With Black Frame - 36
Item no. 12909Pin Bottom Hinge For Wires R Gold - 37
Item no. 12687Handle Aluminium Black - 38
Item no. 12756Bottom Hinge For Wires Right - 39
Item no. 13614Cable Cover - 41
Item no. 11342Ventilation Grill Bottom Black - 42Item no. 10042Cover For Screw White
- 43
Item no. 11556Internal Drain Plug - 44
Item no. 13793Thermometer Digital White - 47
Item no. 15721Filter Drier 20 G - 52Item no. 41214Compressor EMBRACO NEU 2140 U CSR
- 54
Item no. 14614Pin For Big Roller - 55
Item no. 14608Big Roller - 57
Item no. 10658Transformer For Glass - 58
Item no. 10127Washer For Condenser - 59
Item no. 11849Grill Cover For Compressor Com - 60
Item no. 12837False Bottom Hinge - 61
Item no. 14570Adjustable Foot - 65
Item no. 14185Condenser Second Part
