Strong handle
Shelf as accessory
Freezer Room
CRNF3030WD
Item no.: 49688
Brand: TEFCOLD
- 850 mm wide door
- Plug-In - ready after assembly
- 120 mm panel insulation
- Freezing unit
- Easy assembly
- Interlocking connection system
- Anti-slip floor in SS304 stainless steel
- Strip curtain included
- Alarm kit as accessory
- Door position is fixed
- Shelves available as accessory
- Ramp available as accessory for easy access
Technical specifications
Measures and Content
- Temperature Range-20 to -10 °C
- Climate Class5
- Gross / Net Weight865 / 835 kg
- Internal Volume14.93 m³
- Wall Thickness120 mm
- Insulation Density42 kg/m³
Design and Material
- Exterior FinishWhite
- Interior FinishWhite
- Interior LightLED
- Lock
- Door No & Type1 hinged solid door
- Max Load on Floor2000 kg/m²
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingVentilated
- Type of DefrostAutomatic, hot gas
- RefrigerantR290
- Refrigerant Charge200 g
- Thermometer
Power and Consumption
- Max Ambient40°C at 40% RH
- Energy Consumption31.78 kWh/24h
- Annual Energy Cons.11598 kWh/year
- Input Power1630 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level60 dB(A)

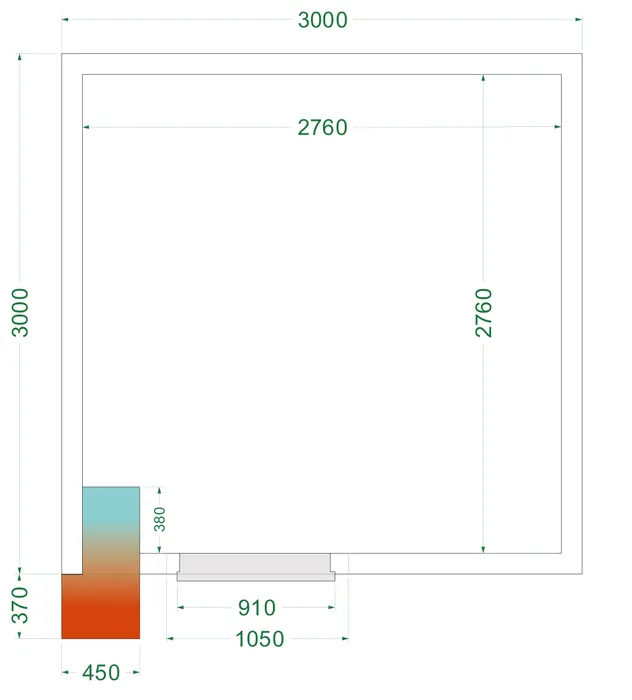

Dimensions
- Internal Dimension (WxDxH)2760 x 2760 x 1960 mm
- External Dimension (WxDxH)3000 x 3000 x 2200 mm
- Packed Dimension (WxDxH)1900 x 3100 x 1600 mm
- 40ft Container Load 3 pcs
- GTIN / EAN5708181711672
Downloads
Description
Spare parts
- 02Item no. 44416Front Panel 450 mm
- 03Item no. 44417Evaporator Panel 450 mm
- 04Item no. 44418Water Box 450 mm
- 05Item no. 44443Compressor NJX 2215 U R290 50Hz
- 06
Item no. 44420Reciever - 07
Item no. 44683Condenser - 08Item no. 44422Expansion Valve Needle
- 09Item no. 44423Expansion Valve
- 10
Item no. 44684Evaporator - 12
Item no. 44425Probe 3000 mm - 14
Item no. 44427Condenser Fan Ø250 mm - 15
Item no. 44428Finger guard - 16Item no. 44429Evaporator Fan Ø300 mm
- 17Item no. 44430Motherboard
- 18
Item no. 44431Waterproof Digital Thermostat - 19Item no. 44661On - Off Switch
- 20Item no. 44441Door frame heater
- 21
Item no. 44434Display Connection Cable - 22
Item no. 44435LED Lamp - 23Item no. 45862EVAPORATOR WATER EXIT ELBOW
- 24
Item no. 44437Finger guard - 25
Item no. 44685Defrost heater 400 W - 26
Item no. 44439Filter drier 3/8 - 27
Item no. 44440Air Valve - 28Item no. 44433Condensate Water Heater
- 29
Item no. 44442Door Switch - 30Item no. 44663Power Switch
- P1Item no. 51632Door
- P3Item no. 44451Door Hinge
- P4Item no. 51559Door Lock
- P5
Item no. 44453Door Gasket - P6Item no. 44454Assembly Tool
- P7Item no. 44455Cleaning PVC Profile (Meter)
- P8Item no. 44456Cleaning PVC Profile Corner
- P9Item no. 44457Door Switch
